• STRADIVARI CELLO Manual
  • Snapshots

Snapshots

Abstract

Use the Snapshots in STRADIVARI CELLO to load preset sounds and articulations.

Snapshots offer a quick way to access different sound and mixer presets, as well as saving your own configurations for convenient access. Examples of Snapshots included in STRADIVARI CELLO are Quartet Seating, which places the cello in a realistic string quartet position, and Orchestral Seating, which has been designed with a broader orchestral setting in mind.

When a User Snapshot is saved, features such articulations, mixer settings and customized keyswitches are stored within the preset. Using Snapshots, you can create your own preset sounds, save them in the .nksn file format and use them in other projects, across computers or even share them with other users.

Overview of Snapshots

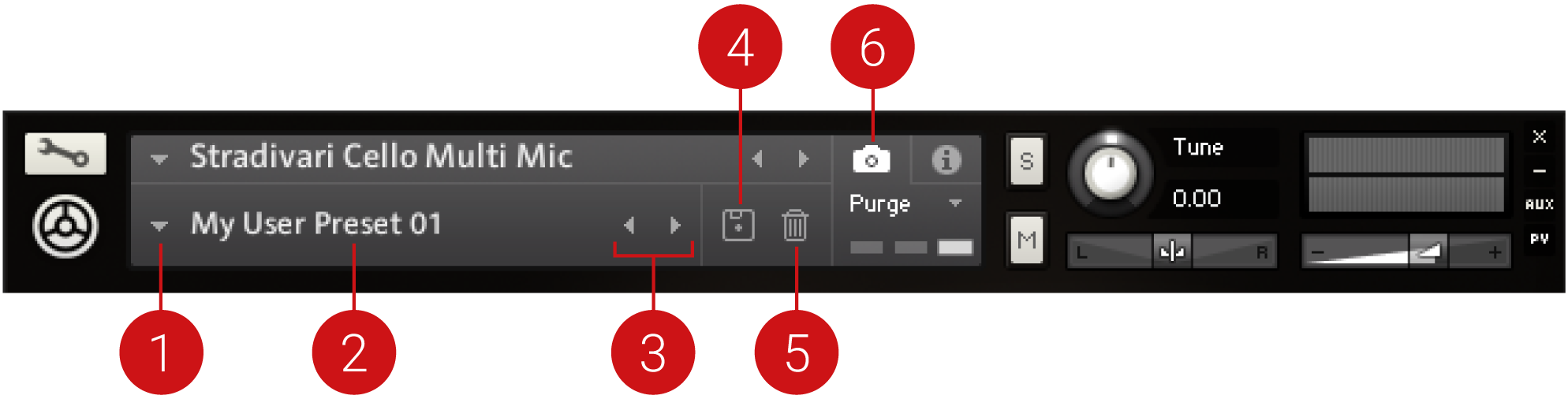

Snapshots offer a quick and convenient way of browsing for new sounds and saving custom presets in STRADIVARI CELLO. Key features relating to Snapshots include:


  1. Load Snapshot: Opens the Snapshot menu where you can load a Snapshot from the User library. For more information, refer to Loading a Snapshot.

  2. Snapshot Name: Displays the name of the currently selected Snapshot.

  3. Snapshot Previous/Next (<> icons): Allows you to quickly browse and load Snapshots. Pressing an arrow icon will load the previous or next Snapshot in the selected category. If no Snapshot is active, the first Snapshot on the list will be loaded. For more information, refer to Loading a Snapshot.

  4. Save Snapshot (floppy disk icon): Allows you to save changes made to a sound. When a User Snapshot is saved, the macros settings, parameter controls, and sequence are stored within it and can be accessed at any time via the User library. For more information, refer to Saving a User Snapshot.

  5. Delete Snapshot (bin icon): Deletes the currently selected Snapshot from the User library. You can only delete User Snapshots and not Factory Snapshots. For more information, refer to Deleting a User Snapshot.

  6. Snapshot View (camera icon): Provides access to the Snapshot features described above; saving, loading, browsing, and deleting. When Snapshot View is selected, configuration settings and features relating to the Info View are replaced in the display.

Saving a User Snapshot

Snapshots can be saved at any time while you are working on them. When a Snapshot is saved, parameters and features such as articulation slots, mixer settings and customized keyswitches are saved within the preset.

To save a Snapshot:

  1. Click the Snapshot View button (camera icon) to open Snapshot view.

  2. Click the Save button (floppy disk icon).

  3. Enter a name for your new Snapshot in the Save dialog box.

  4. Click Save to finish the process and close the dialog box.

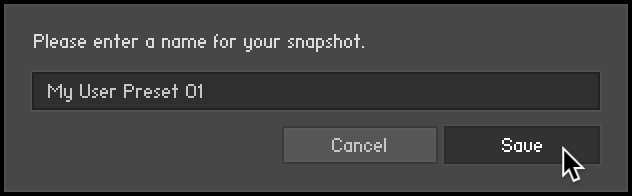

    PS_Save_Snapshot_04.tiff

    Your Snapshot .nksn file is saved to the User Snapshot Library. It appears in the User Snapshot list.

To overwrite a Snapshot:

  1. Click the Snapshot View button (camera icon) to open Snapshot view.

  2. Click the Save button (floppy disk icon).

  3. Click Overwrite to confirm the process.

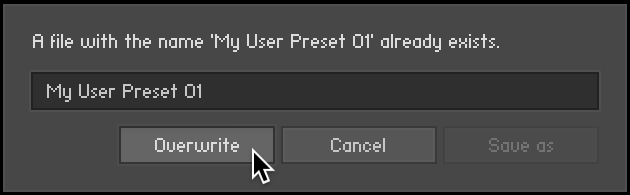

    PS_Overwrite_Snapshot.tiff

    Your Snapshot .nksn file is saved to the User Snapshot Library, in replace of the old file.

Loading a Snapshot

Snapshots are loaded from the drop-down menu in the top header of the instrument. You can also use the arrows to the left of the floppy disk icon to load the next or previous preset.

To load the previous or next Snapshot:

  1. Click the Snapshot View (camera icon) to open Snapshot view.

  2. Click the arrow icons (<>) in the Snapshot header to browse through the Snapshots list.

    The previous or next Snapshot will load immediately each time an arrow icon is clicked.

To load a Snapshot from the library:

  1. Click the Snapshot View (camera icon) to open Snapshot view.

  2. Click the arrow next to the Snapshot name field.

  3. Select the User category to load one of your own snapshots.

  4. Click a Snapshot to load it.

Note

Note that the User category will not appear until you have first saved a Snapshot.

Deleting a User Snapshot

Snapshots can be deleted using the bin icon in the instrument header. To delete a User Snapshot:

To delete a User Snapshot:

  1. Click the Snapshot view (camera icon) to open Snapshot view.

  2. Load the User Snapshot you wish to delete.

  3. Click the Delete button (bin icon).

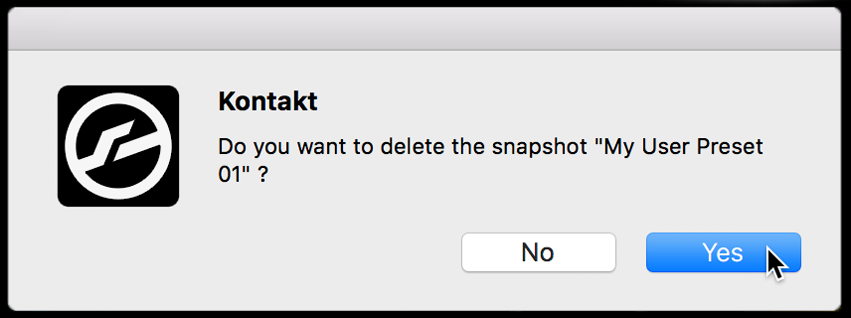

  4. Confirm deletion of the Snapshot by selecting Yes in the dialog box.
