Integration

Abstract

Learn how STRADIVARI CELLO integrates with NKS instruments and your DAW when using automation and MIDI CC Mapping.

This chapter explains how STRADIVARI CELLO integrates with NKS instruments and your DAW when using automation and MIDI CC Mapping.

NKS Keyboard Mapping

STRADIVARI CELLO supports NKS (Native Kontrol Standard). The default NKS mapping can be seen in the KONTAKT or KONTAKT PLAYER keyboard:

Virtual keyboard in KONTAKT indicating the NKS mapping with colors.

Red: The Red keys are used for switching between different articulation slots. For more information, refer to Articulation.
Purple: The purple key is used for the Bow Change feature. For more information, refer to Bow Change.
Green: The green key is used for the Force Open Strings feature. For more information, refer to Force Open Strings.
Blue: The blue keys indicate the range of notes playable with STRADIVARI CELLO

NKS Control Mapping in STRADIVARI CELLO Multi Mic

STRADIVARI CELLO Multi Mic NKI comes with pre-mapped NKS controls.

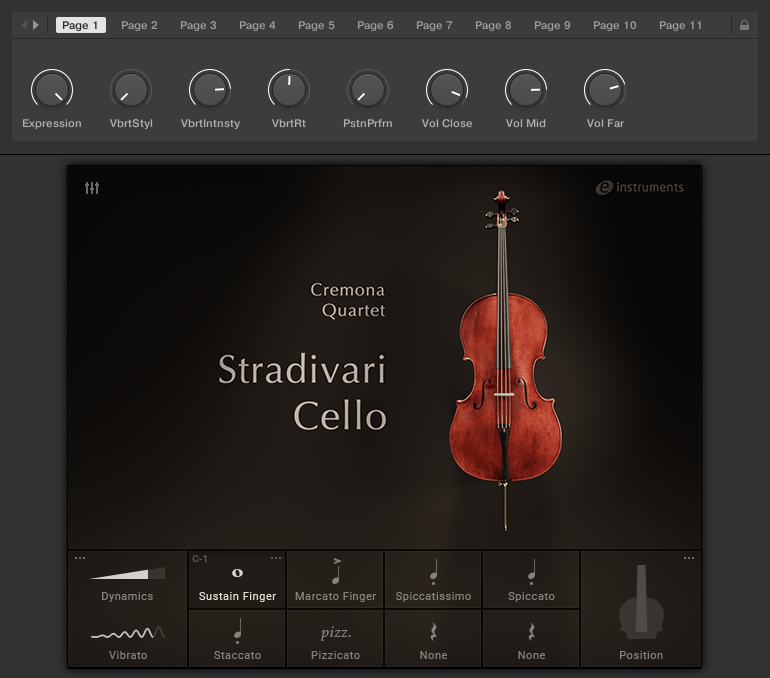

STRADIVARI CELLO's Multi Mic NKS controls as seen in KOMPLETE KONTROL software.

The following controls have been pre-mapped:

Expression
Vibrato Style
Vibrato Intensity
Vibrato Rate
Position Preference
Volume, Close Microphone
Volume, Mid Microphone
Volume, Far Microphone

NKS Control Mapping in STRADIVARI CELLO

The standard version of STRADIVARI CELLO comes with pre-mapped NKS controls.

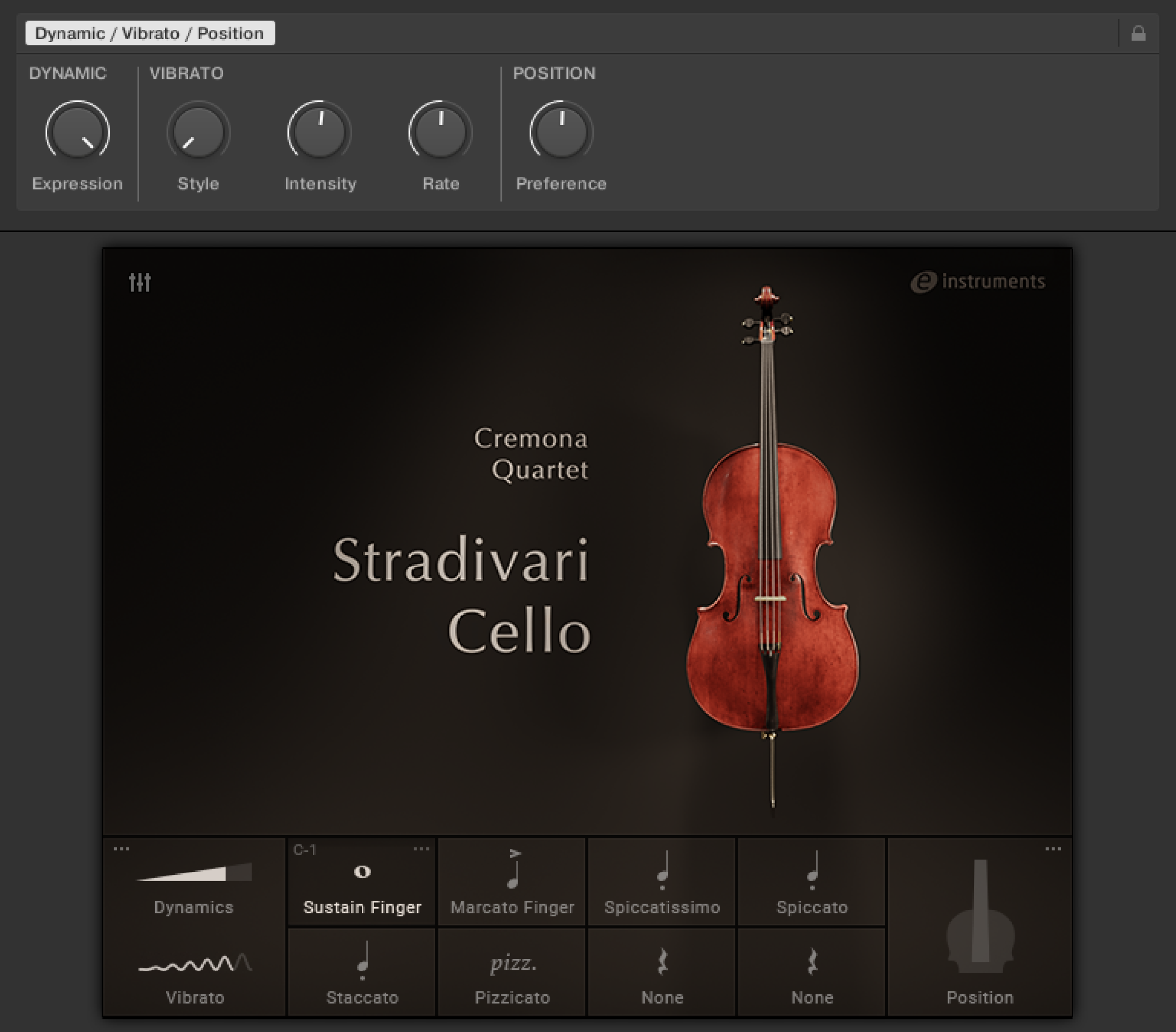

STRADIVARI CELLO's NKS controls as seen in KOMPLETE KONTROL software.

The following controls have been pre-mapped:

Expression
Vibrato Style
Vibrato Intensity
Vibrato Rate
Position Preference

Host Automation

STRADIVARI CELLO has pre-mapped host automations.

Click Automation in the top-left side of KONTAKT or KONTAKT PLAYER to show the list of mapped parameters.
Click Host Automation to show the list of pre-mapped host controls.

Pre-Mapped Host Parameters for STRADIVARI CELLO Multi Mic NKI

The following parameters have been pre-mapped for STRADIVARI CELLO Multi Mic:

Host parameter	Assigned to
# 000	Expression
# 001	Vibrato Style
# 002	Vibrato Intensity
# 003	Vibrato Rate
# 004	Position Preference
# 005	Volume, Close Microphone
# 006	Volume, Mid Microphone
# 007	Volume, Far Microphone

Pre-Mapped Host Parameters for STRADIVARI CELLO NKI

The following parameters have been pre-mapped for STRADIVARI CELLO’s standard version:

Host parameter	Assigned to
# 000	Expression
# 001	Vibrato Style
# 002	Vibrato Intensity
# 003	Vibrato Rate
# 004	Position Preference

MIDI CC Mappings

The following MIDI CCs are either pre-mapped or used internally by .

Pre-mapped CCs have the respective parameters written next to them. The unmarked CCs are used internally by the STRADIVARI CELLO engine. It is suggested to avoid using or remapping these CCs to avoid any possible MIDI issues.

CC	Parameter
1	Dynamic
2
3
4
11	Expression
14	Vibration Intensity
15	Vibrato Rate
20	Vibrato Style
21	Position Preference
35
40
41
42
43
45
50
51
52
102
103
104
105
106
107
108
109
