4 Channel Mixer

Mixer with deep routing and shaping capabilities

 (2 Votes)
Timmy
1.0 (Updated 2 years ago)
8.3MB
April 17, 2022
Reaktor 6
CV processor Tools VCA Sound Processor

DESCRIPTION

4 Channel Mixer.
Very versatile 4 channel mixer with deep routing and signal shaping capabilities in a smaller form.

Channels 1 & 2 have a 3 band EQ 2x sampled with saturation control on the back panel, A/B Aux routing, modulation, and other. Channels 3 & 4 are identical but without the EQ.

Almost everything is built using optional clocking, so each channel has a power button, each channel can be switched from Stereo to Mono, and the EQ can be switched off for channels 1 & 2, saving CPU when not in use.

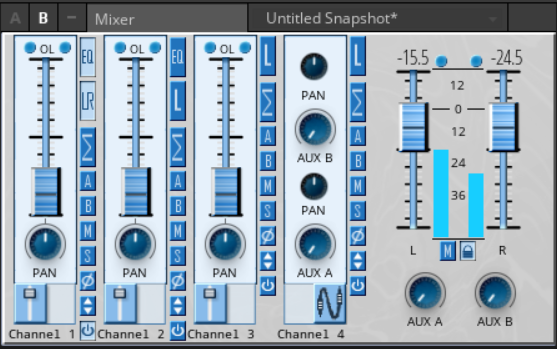

Panel A is your patching side, Panel B has the main controls.

COMMENTS  (1)

Please login to add a comment
Arianicide
2 years ago
Almost perfect, bravo! My favorite mixer in Block format yet, by far. Reminds me somehow of the versatility of some EuroRack module like SSF Vortices. May I suggest something for 1.1 version? Pan modulation. Leverl meter on each channel. And maybe more info hints. I think I eventually figure it out what each button was doing, but not easy (by the way, what does "DBs/amp" do?). Thanks again!
