Dual DPW X-Mod

Upgraded FM Algorithm

 (7 Votes)
Audio Player
00:00
00:00
00:00
Use Up/Down Arrow keys to increase or decrease volume.
2 (Updated 9 years ago)
901.0kB
December 16, 2015
Reaktor 6
VCO

DESCRIPTION

Version 2 upgrades the FM circuit to a linear algorithm and adds DC filters to the feedback loop, greatly improving the sound. Thanks to Benjamin Poddig for making these modifications, and teaching me a lot in the process as well.

*****

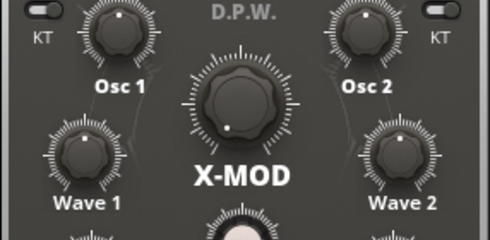

Two DPW oscillators with cross-modulation. DPW stands for differentiated polynomial waveform, which is an anti-aliasing algorithm that has low impact on CPU.

Cross modulation is a feedback style FM effect; each oscillator modulates the other's frequency. The maximum intensity of this effect can be easily edited within the structure.

It also has a Grit feature, which is a mix between a ring modulation effect and a rectifier.

The oscillators also have output attenuators which can be used for amplitude modulation, which help achieve dynamic X-mod and Grit effects.

The oscillator has alternate outputs which bypass the attenuators.

ººººº

This oscillator is based on macros by Benjamin Poddig. It also contains a rectifier macro from the Euro Reakt series.

COMMENTS  (9)

Please login to add a comment
Catman Dude
5 years ago
Wonderful work, Brett! Thanks to you and B.P.
Brett Lavallee
8 years ago
Tyvm
david goodman
9 years ago
can definitely hear some orbital in your track
Brett Lavallee
9 years ago
Thanks for the info, interesting as always, Poddig.
Benjamin Poddig
9 years ago
Sorry autocorrection corrected 'differentiated' to 'Differentialrechnung'
Benjamin Poddig
9 years ago
Thank you for the blocks. I never had such an easy was to interact with these algos and get those greatful sounds out of it. As a sidenote: dpw stands originally for differentiated parabolic waveform. Which I think, please correct me if Im wrong, originates from Välimäki. He also generalized the term to Differentialrechnung polynomial waveform. The waveforms in this Implementation could be best described as differentiated piecewise polynomial waveforms.
Brett Lavallee
9 years ago
:) thanks
Christian Huygen
9 years ago
Well it sounds really good, regardless.
Brett Lavallee
9 years ago
I added a demo track, with all sounds made by DPW X-Mod. It wasn't my intent, but I think it sounds a little like Orbital. Although, maybe I am just flattering myself...
