MS16

modulation sequencer

 (82 Votes)
Audio Player
00:00
00:00
00:00
Use Up/Down Arrow keys to increase or decrease volume.
3.0 (Updated 16 years ago)
100.6kB
January 07, 2009
Reaktor 5 or lower
Instrument Sequencer

DESCRIPTION

this is a special sequencer generating a modulation signal. most of my synths and samplers have a cv-input where you can connect this one.

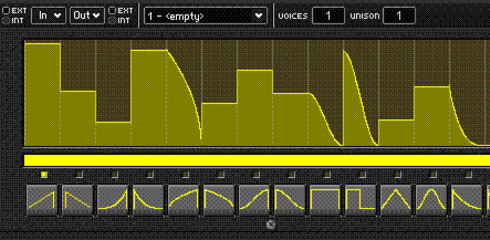

the basic concept is similar to the performer-modulation in N.I.'s Massive. you can select 16 different curves which are written into the 16 sequencer steps. you can scale each sequencer step and also adjust the overall level of the modulation signal.
the instrument corresponds to incoming midi note, gate and control messages. you can select one of eigth patterns using midi note C2 - G2. The sequence restarts at incoming midi gate signals or at the snc-input if "gate sync" is activatetd. last but not least the amount knob and the invert-button correspond to midi control # 1 and 2.
the mp3 file is played by my nord synthesizer with a plasma sequencer for gate and pitch and a MS16 modulating osc 1 fm amount and filter 1 frequency.

1st update: a half transparent bar shows the current readout position

COMMENTS  (26)

Please login to add a comment
David Coffin
8 years ago
O frabjous day! So glad to find this, thank you! I dropped in an IC Send and LOVE the extra controls this adds to that:)
metric
12 years ago
this is absolutely perfect! thank you Stephan!
Matthias Schaffner
12 years ago
This is excellent, exactly what i needed. But can you please tell me how to turn off the pattern select by midi note?
michael o'hagan
13 years ago
I'm working on turning this into a 32 step performer with 128 patterns selectable by a knob, I've pretty much got it working except for the multi display that shows current position, it passes through once and then disapears for the second pass through and then re appears on the third pass through, it is only visible on every other pass, any suggestions?
Carsten Brück
13 years ago
one of my absolute favorites.. ;-)
Mark Atherton
13 years ago
i think this is fantastic - i've been looking for something like this for a while ... could you include a little more in the way how to use it ...i've managed to get it to modulate a filer in my synth ..but how to control it from the clock so it starts and stops with the sequencer etc would be great ... but overall - top marks - cheers
Phill Liford
14 years ago
Hello sorry I'm quite new to Reaktor how would I get this to simply effect the pitch or the cutoff of a filter? I'm not sure how I would go about routing this into a synth thanks
jerzy przezdziecki
14 years ago
hi stephan, could you explain how can i trigger my Nord synth by your sequencer? i don't see any midi out coming from the sequencer...
Michael Stannard
14 years ago
This is awesome! Been looking for something like this forever.
Lorenzo Quadri
14 years ago
very great!thanks a lot
Marco Post
16 years ago
thanks.. really appreciate it.. this .ens is just too good.. ----- could you tell me what feeds the event table that generates the step shapes? I'm quite new to event tables and trying to understand how/what/where in this .ens.. thnx..
Stephan Becker
16 years ago
@ marco: i think a global envelope and the direction control are easy to implement. I'll have a look at it next week.
Marco Post
16 years ago
some other thoughts.. - separate CC output per step - global depth envelope slope for all steps - sequencer direction (FW/BW/FWBW, Random etc) - shuffle
Marco Post
16 years ago
just what I needed.. great ens.. would it be possible to have a separate CC output for each step?
Kriz Di
16 years ago
massive style !!! cooooool)))))) thnx !!!
Kimmo Kivelä
16 years ago
Yum!
Stephan Becker
16 years ago
Qsandy: thanks for your suggestions. i've implemented them.
Phil Durrant
16 years ago
Sandy has a point about the always active panel element. i used a numeric readout. whatever, i am loving this :-)
Sandy Small
16 years ago
Splendid work as always, and the new step indicator is a nice addition. I have a few suggestions--rather than dividing the clock output sent to the multi display by 16, divide it by the output of the event table in the clock macro. That way, when the number of steps is reduced, the multi display will indicate the correct step rather than running faster and faster through all 16. Secondly, it would be nice to connect an invisible, always-active panel element (I used a lamp) before the output so the sequence can be altered without having to connect the output to another ensemble first. Cheers!
Phil Durrant
16 years ago
@Stephan: Thanks :-)
josh hinden
16 years ago
simple, useful and deep. just the way i like em!
Stephan Becker
16 years ago
@phil: i wanted to add a multi display which shows the current step, but i still have some problems with that. i'm working on that, it will be included in the next update.
Carlo Pearson
16 years ago
This is great!!! Thanks! 10!
Phil Durrant
16 years ago
except my vote was not counted :-(
Phil Durrant
16 years ago
wow, great idea!... it would be nice to see which step is being sent out, but i still have to give this a 10.
Al Watson
16 years ago
i like this :-)
