DESCRIPTION

Multi picture based vertical linear - controlled knob, attempting to emulate some of the control and output functions of a native Reaktor control (but with your own custom graphics). This is a test ensemble - the real content is the VerticalLinearKnob macro embedded in the instrument. I have included a test graphic for demo purposes but the macro is designed for you to quickly set up your own graphical creations.

Features:
1. Allows interactive mouse control over on-screen knob position
2. Provides a value meter displaying definable output value range (with definable value quantisation)
3. MIDI controller input of knob position
4. Output of MIDI (0...127) and Value (range defined by the input Vmax and Vmin values, with Vqt quantised steps) events.
5. Inclusion in / isolation from snapshots (via the Snp input to the macro)
6. Triggered value reset to a definable value within the valid value range (the V0 and Rst macro inputs)
7. Fairly extensive commenting within the macro structure.

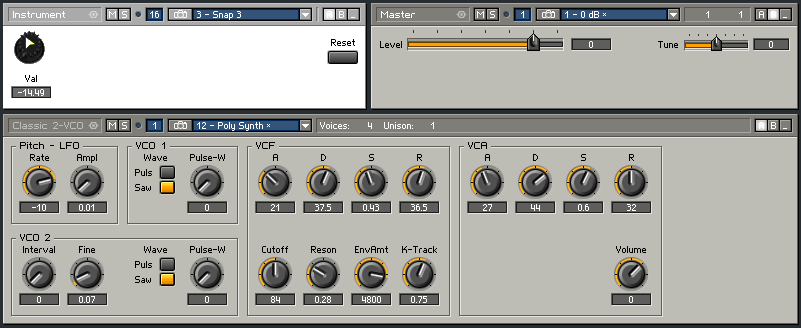

Test host instrument also provides a MIDI routing macro with a controlling knob to set the desired output MIDI controller ID of the fader macro, and a test button for the Reset function. To test the MIDI input control feature of the fader, send values for controller id #28 on midi channel #16, and watch the Volume knob on the included simple synth instrument from the Reaktor library move! There are also 3 test snapshots to show that the knob does respond to snapshot recall (if the Snp input to the macro = 0).

Richard
