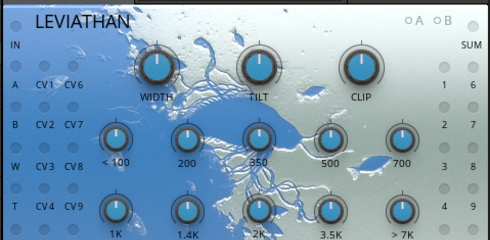

Leviathan
10 Channel Bandpass Filter Block
DESCRIPTION
Inspired by Buchla module 295.
A 10 channel bandpass filter with controls for bandwidth, frequency tilt, and asymmetrical clipping.
Level controls for each channel determine the mix sent to the SUM output.
Alternate outputs are available for each channel, for achieving custom mixes using external devices.
The demo is a recording of the filter processing a static white noise source.
The latest update expands the module with new inputs and outputs. Now every control has a designated CV input, so each parameter can be modulated with separate external sources.
Also, a new “VCA” output for each channel was added. These are different from the existing individual outputs, because their levels are affected by the VCA controls. To prevent clutter, these new outputs can only be found using the structure view.
