DESCRIPTION

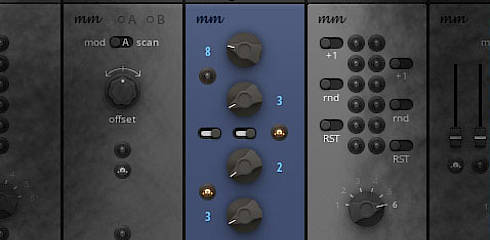

Upper part: Incoming clock -> divider (upper knob, value on left) -> counter (second knob, value on right). Left upper lamp monitors the upper part's output.

Lower part: Incoming clock -> divider (lowest knob, value on left) -> counter (third knob, value on right). Left lower lamp monitors lower part's output.

Central part: first switch is syncing lower divider to upper (on each impulse from upper divider the lower is reset); second switch enables "cancelling" - if both outputs give gate, they cancel each other - nothing is passed to final output. Lamp on the right monitors final clock output.
